The 7m Hand Lift Mobile Light Tower is a portable and trailer-mounted lighting solution designed for construction sites, road and highway projects, mining operations, infrastructure projects and emergency applications. Featuring a 7-meter four-section telescopic mast, manual hand-lift system and integrated diesel generator, it provides reliable temporary lighting for outdoor work areas where stable illumination is required.
The mobile lighting tower supports LED or metal halide lighting configurations, with up to 4 lamps available for wide-area illumination. A 38-liter fuel tank provides up to 28 hours of continuous operation, while the adjustable stabilizing legs and heavy-duty steel structure help ensure stable deployment in outdoor working environments.
Designed for construction contractors, equipment distributors, rental companies and engineering projects, this 7m mobile light tower offers flexible configuration, easy transportation and dependable performance. OEM and ODM services are available for engine brands, lighting configuration, product color, logo and packaging.
The 7m Hand Lift Mobile Light Tower is a trailer-mounted outdoor lighting solution designed for construction sites, road and highway projects, mining operations, emergency response, infrastructure projects and other applications requiring reliable temporary illumination.
With a maximum mast height of 7 meters, a manual hand-lifting system, high-efficiency lighting options and a diesel generator, this mobile lighting tower provides flexible illumination for large outdoor work areas.
The unit is equipped with a 38-liter fuel tank and can provide up to 28 hours of continuous operation, depending on the lighting configuration and operating conditions.
Its compact trailer-mounted design, adjustable stabilizing legs and corrosion-resistant steel structure make it suitable for transportation and deployment in demanding outdoor environments.

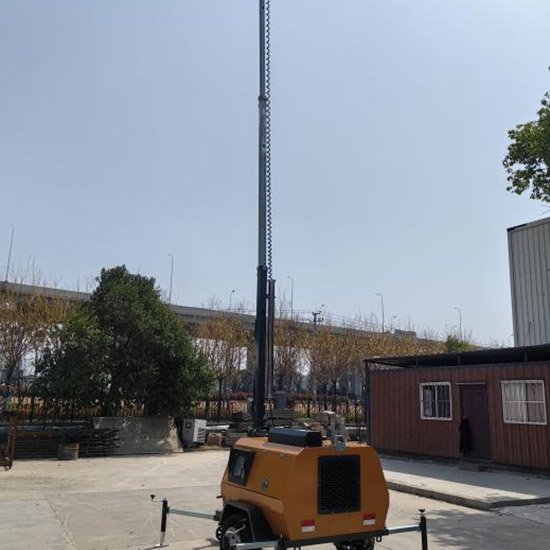

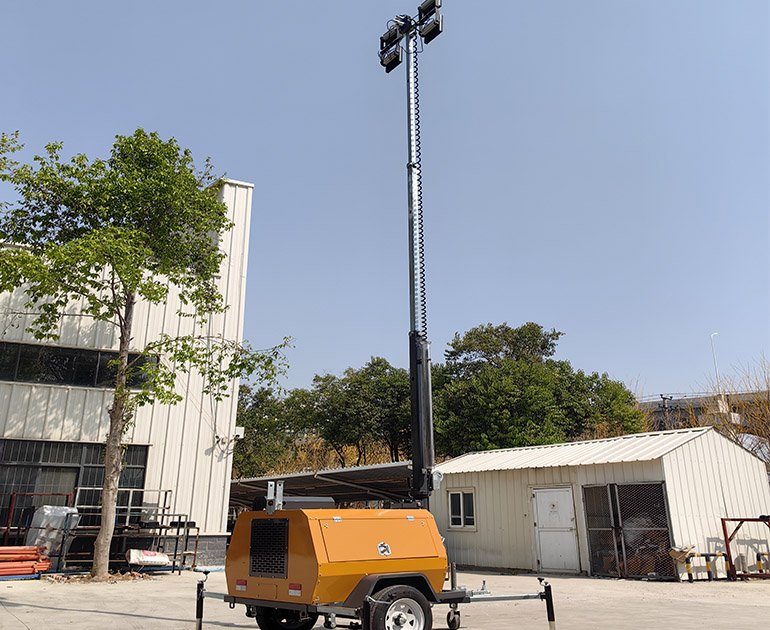

The four-section telescopic mast extends vertically to a maximum height of 7 meters, increasing the lighting coverage of outdoor work areas.
The mast is designed for repeated deployment and can be raised and lowered using the integrated manual hand-lift mechanism.
The lighting system can be configured according to project requirements.
Available configurations include:
2 × LED lights
4 × LED lights
Metal halide lamps
LED configurations provide high luminous efficiency and long service life, while metal halide lamps can be selected for applications requiring a traditional high-intensity lighting solution.
The standard configuration uses a Changchai 186F diesel engine with a rated power of 5.5 kW.
The generator provides an independent power source for outdoor lighting applications where grid electricity is unavailable or temporary lighting is required.
The mobile lighting tower is equipped with a 38-liter fuel tank.
Under the specified operating configuration, the unit can provide up to 28 hours of continuous working time, reducing the frequency of refueling during extended outdoor operations.
Actual runtime may vary depending on lighting configuration, load and operating conditions.
The hand-lifting system provides a straightforward way to raise and lower the mast without requiring a hydraulic lifting system.
This configuration is suitable for users who prioritize simple operation and easy maintenance.
The lighting tower uses a trailer-mounted chassis with manually adjustable stabilizing legs.
The structure is designed to provide stable support during operation and can be positioned at outdoor job sites before raising the mast.
The main structure uses heavy-duty steel components with an anti-corrosion surface treatment.
This construction is intended for outdoor applications where the equipment may be exposed to dust, moisture and changing weather conditions.
The 7m Hand Lift Mobile Light Tower can be used in a wide range of temporary and mobile lighting applications.
Provides temporary illumination for:
Building construction
Foundation work
Concrete operations
Night-shift construction
Large outdoor work areas
Suitable for:
Highway construction
Road maintenance
Bridge construction
Tunnel approaches
Night roadwork
Traffic infrastructure projects
The mobile lighting tower can provide temporary lighting for:
Mining sites
Quarry operations
Industrial yards
Material handling areas
Equipment maintenance areas
Remote industrial projects
Its independent generator and trailer-mounted design make it suitable for temporary lighting during:
Emergency rescue
Disaster recovery
Search and rescue operations
Temporary command areas
Emergency infrastructure repair
It can be deployed for:
Railway construction
Railway maintenance
Utility infrastructure
Municipal engineering
Pipeline construction
Large-scale infrastructure projects
The generator-powered design allows the unit to operate in locations where access to grid electricity is limited or unavailable.
| Item | Specification |
|---|---|
| Model | 4VA4000 |
| Maximum Mast Height | 7 m |
| Lifting Method | Manual Hand Lift |
| Mast Type | 4-Section Vertical Telescopic Mast |
| Engine Brand | Changchai |
| Engine Model | 186F |
| Engine Type | 1-Cylinder, Air-Cooled, 4-Stroke |
| Engine Power | 5.5 kW |
| Frequency | 50 Hz |
| Rated Speed | 3600 rpm |
| Emission Level | Tier 4 |
| Alternator | Brushless, Single Phase |
| Alternator Insulation | Class H |
| Rated Voltage | 220 V |
| Output Socket | 1 × 220 V / 10 A |
| Fuel Tank Capacity | 38 L |
| Continuous Working Time | Up to 28 hours |
| Lighting Configuration | 1000 W × 4 / 400 W × 4 |
| Lighting Type | LED / Metal Halide |
| Luminous Flux | Up to 440,000 lm* |
| Irradiation Distance | 100–150 m* |
| Stabilizing Legs | Manual Adjustment |
| Maximum Slope | <10° |
| Wind Resistance | <8 level |
| Suspension | Hex Rubber Shaft |
| Brake | Without Brake |
| Overall Length | 2180 mm |
| Overall Width | 1130 mm |
| Overall Height | 2700 mm |
| Tire & Rim Size | 13" |
| Weight | Approx. 550 kg |
* Lighting performance may vary according to the selected lamp configuration and actual operating conditions.
The 7m mobile light tower can be configured with different lighting systems according to application requirements.
| Configuration | Application |
|---|---|
| 2 × LED Lights | General outdoor lighting |
| 4 × LED Lights | Large-area construction lighting |
| Metal Halide Lamps | High-intensity temporary lighting |
For distributors and project contractors, the lighting configuration can be discussed according to the target market, operating environment and required illumination area.
The 7-meter mast elevates the lighting source above the working area, helping provide wider illumination for construction and infrastructure projects.
The integrated diesel generator allows the tower to operate independently from the local electrical grid.
The 38-liter fuel tank supports extended operation and reduces the need for frequent refueling during long working shifts.
The manual hand-lift mechanism provides a simple solution for raising and lowering the four-section mast.
The trailer-mounted configuration allows the equipment to be moved between different work areas as required.
LED and metal halide lighting options allow the equipment to be configured for different project requirements.
The steel structure, surface treatment and stabilizing system are designed for repeated outdoor deployment.
Before operating the mobile light tower, position the equipment on a suitable level surface and secure the trailer.
1. Position the trailer
Move the lighting tower to the required work location.
2. Stabilize the equipment
Adjust the stabilizing legs to provide stable support.
3. Check the generator
Inspect the fuel level, engine condition and electrical connections before starting.
4. Start the generator
Start the diesel generator according to the operating instructions.
5. Raise the mast
Use the manual hand-lift mechanism to raise the four-section mast to the required height.
6. Adjust the lighting direction
Set the lamp orientation according to the required working area.
7. Shut down and lower the mast
After operation, switch off the lighting system and generator, then lower the mast before transportation.
Always operate the equipment according to the manufacturer's operating and safety instructions.
We provide OEM and ODM services for distributors, wholesalers, rental companies, contractors and project-based customers.
Customization options may include:
Customer logo
Product color
Engine or generator brand
Lighting configuration
Lamp quantity
Packaging design
Product labeling
For larger projects, lighting configuration and generator specifications can be discussed according to the required operating environment and local market requirements.

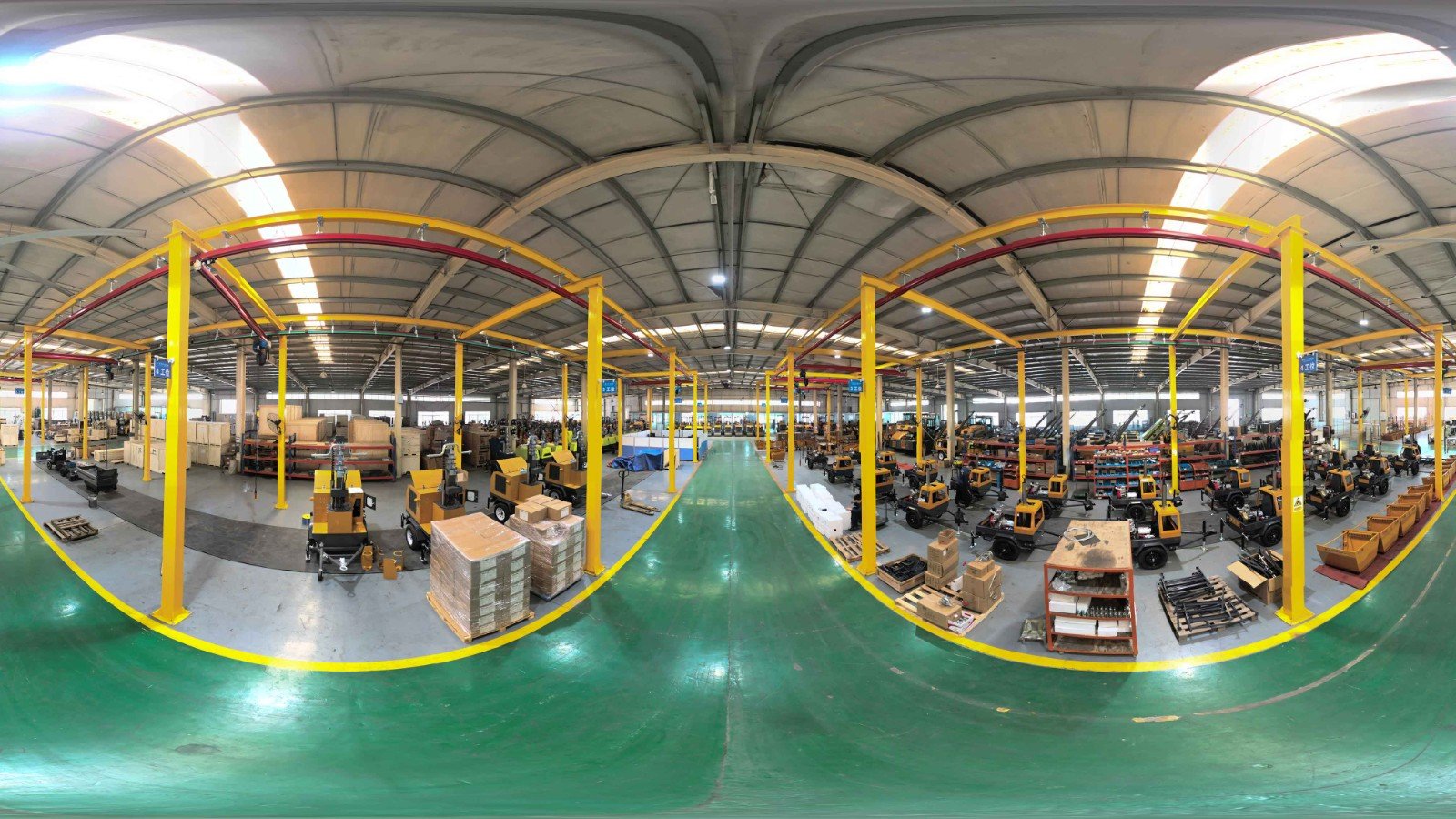

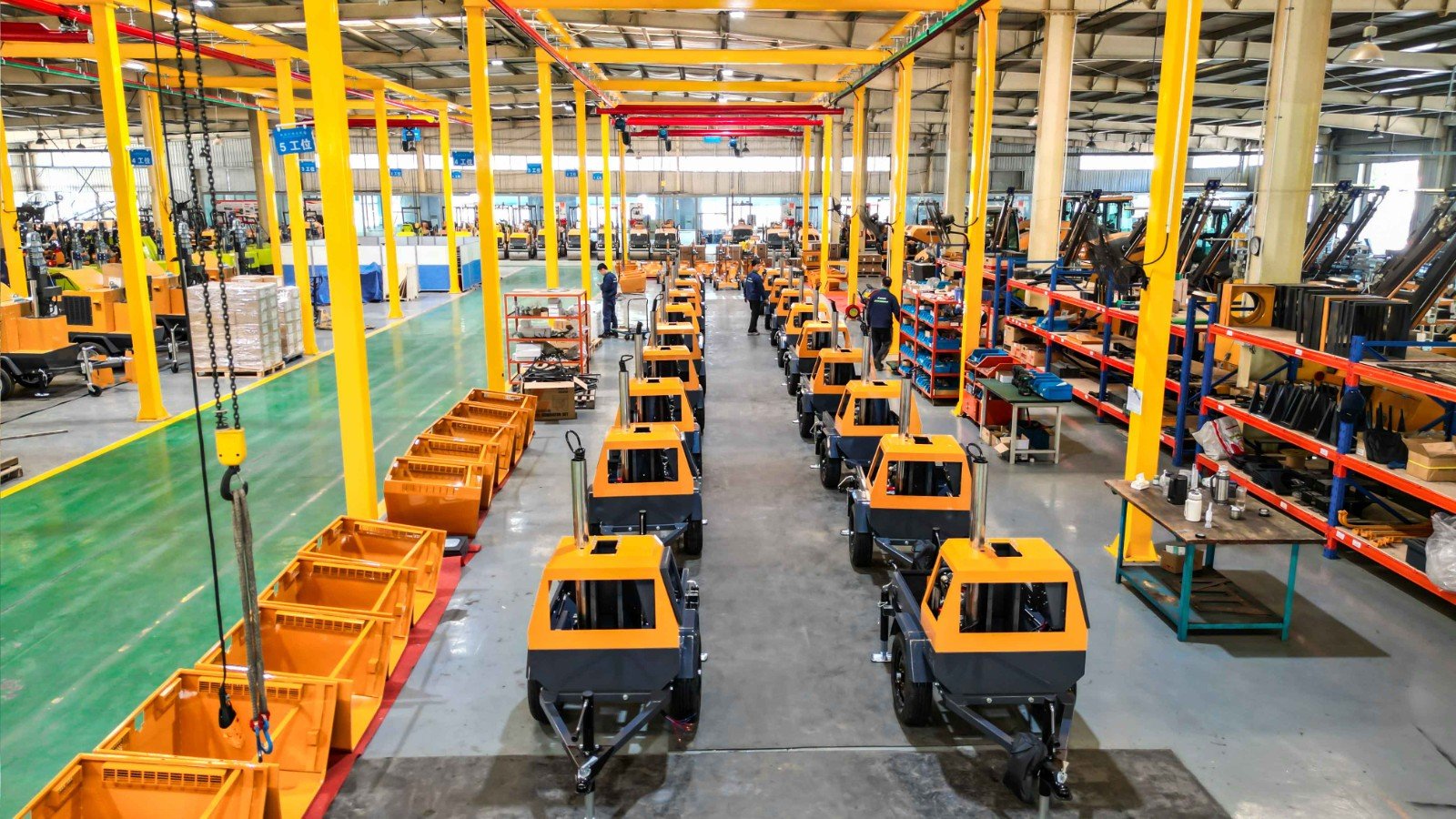

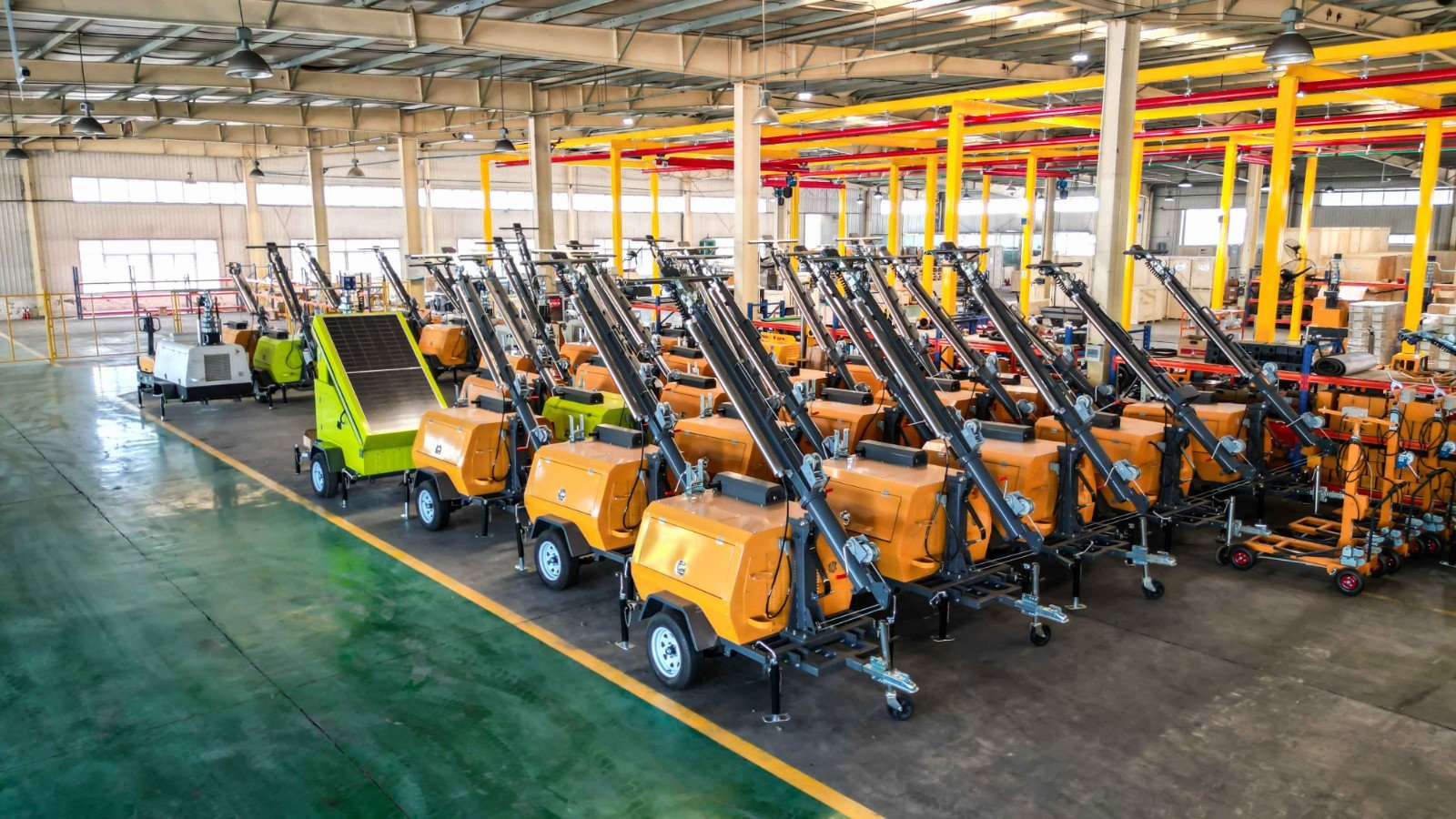

As a manufacturer and supplier of mobile lighting equipment, we focus on product configuration, assembly quality and pre-delivery testing.
Each mobile lighting tower can be inspected before shipment to verify key operating functions, including:
Engine starting
Generator output
Lighting operation
Mast lifting and lowering
Stabilizing system
Electrical connections
Overall equipment condition
Product configuration and testing requirements can be adjusted according to customer specifications and project requirements.
We supply mobile lighting towers for international construction, infrastructure, mining, emergency response and industrial applications.
Our export service can support:
Product configuration
OEM/ODM projects
Bulk orders
Export packaging
Documentation
International logistics coordination
Distributor cooperation
Project-based equipment supply
We work with equipment distributors, wholesalers, rental companies, contractors and engineering companies looking for mobile lighting equipment for different markets.
The telescopic mast can extend to a maximum height of 7 meters.
This model uses a manual hand-lift system with a four-section vertical telescopic mast.
The tower can be configured with 2 LED lights, 4 LED lights or metal halide lamps, depending on the required application.
The specified configuration has a 38-liter fuel tank and can provide up to 28 hours of continuous operation. Actual operating time depends on the lighting configuration, load and working conditions.
The standard specification uses a Changchai 186F diesel engine with a rated power of 5.5 kW.
Other engine or generator configurations may be available for OEM projects.
Typical applications include construction, road and highway projects, mining, railway construction, municipal engineering, emergency response, disaster recovery and remote outdoor operations.
Yes. OEM and ODM services are available for distributors, wholesalers, contractors and project customers. Options may include logo, color, engine brand, lighting configuration and packaging.
Yes. Because the unit has an integrated generator and fuel tank, it can provide independent lighting in outdoor locations where grid electricity is unavailable.
Yes. The 7-meter mast, trailer-mounted design, independent generator and multiple lighting configurations make it suitable for temporary construction-site lighting.
The specified unit weighs approximately 550 kg.
We supply 7m mobile light towers for construction, infrastructure, mining, emergency response and industrial applications.
The 7m Hand Lift Mobile Light Tower combines a vertical telescopic mast, manual lifting system, diesel generator and flexible lighting configurations in a mobile trailer-mounted design.
For distributors, contractors, rental companies and engineering projects, we can provide product configuration, OEM/ODM customization and international export support.
Contact us for product specifications, configuration options and quotation.
