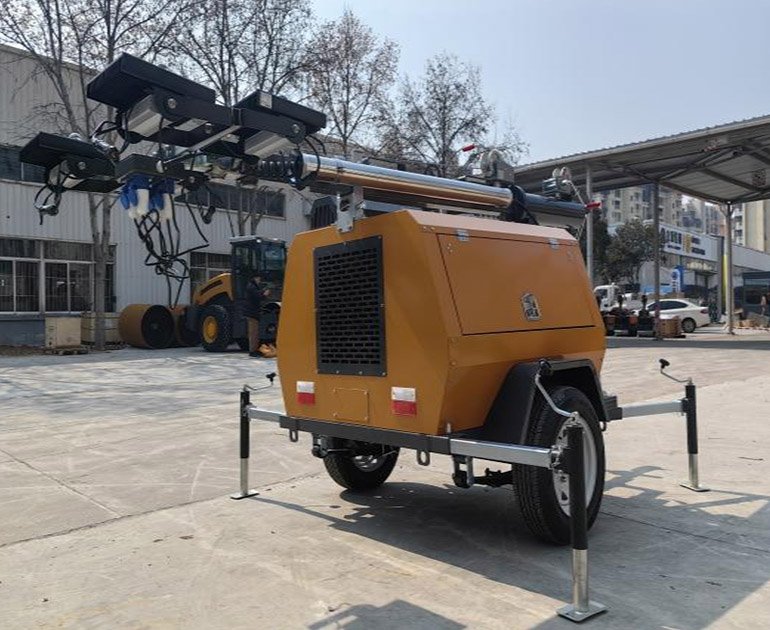

Heavy-duty 9m hydraulic light tower with 330° rotating mast, LED lamps and hydraulic support legs. Designed for mining, infrastructure and emergency lighting.
Performance characteristics
- Equipped with imported power unit, reliable quality and excellent performance
- Fitted with energy-saving LED lamps, high luminous flux and long service life
- Intelligent unit control system with computer, one-key start-up
- 8-section galvanized lifting light pole, anti-falling and corrosion-resistant
- Four wind-resistant hydraulic telescopic outriggers for stable support
- Self-locking light pole supports 330° rotation, realizing large-scale and multi-directional illumination
- 9-meter maximum lifting height, electrically adjustable irradiation angle, long lighting distance
- Large-capacity fuel tank for extremely long working endurance
· Highway and municipal engineering night construction
· Railway, bridge and tunnel construction
· Emergency rescue, fire fighting and disaster relief
· Mining and various industrial site lighting
· Port, wharf and airport site night operation
· Water conservancy, flood control and infrastructure construction
· Outdoor equipment maintenance and engineering maintenance
· Temporary lighting for large-scale outdoor events
· Petrochemical and field exploration in remote areas
· Various night temporary construction and security lighting
9m Ultra-High Lighting Height
It meets the large-area high-altitude lighting demands of major projects such as highways, railways, bridges, tunnels and mines, with a wide field of vision and extensive coverage.
Intelligent & Advanced Control System
Computer-controlled with one-key start-up, simple and efficient operation, ideal for rapid deployment scenarios such as emergency rescue and night construction.
Fully Hydraulic Stable Structure
Hydraulic lifting with hydraulic telescopic outriggers ensures smooth lifting, firm support and strong wind resistance, enabling safe use in complex environments such as fields and construction sites.
High-End Configuration, Durable & Reliable
Imported power unit, long-life LED light source and galvanized anti-corrosion light pole deliver a high-end overall configuration, suitable for high-intensity working conditions including long-term outdoor construction, remote field operations and post-disaster reconstruction.
Flexible Multi-Angle Lighting
330° rotation with electric angle adjustment allows precise alignment to construction areas, satisfying directional lighting needs for various scenarios such as municipal engineering, outdoor maintenance and large-scale events.
Extra-Long Endurance for Continuous Operation
The large-capacity fuel tank guarantees long-time uninterrupted lighting without frequent refueling, greatly improving the efficiency of night construction and emergency rescue operations.
We specialize in outdoor emergency and construction lighting equipment manufacturing.
Every mobile lighting tower is tested before delivery to ensure stable performance.
We support customized solutions based on project and market requirements.
Professional international logistics and export support for global customers.
Efficient production management ensures reliable lead time and bulk order support.
We provide flexible OEM and ODM solutions for global distributors, wholesalers and project contractors.
Customization options include:
1.Logo printing
2.Product color
3.Engine / Generator Brand Configuration
4.Lamp quantity
5.Packaging design
MODEL | 4HVP1600 | ||
Size | long(mm) | 3600mm | |
wide（mm） | 1670mm | ||
high（mm） | 2480mm | ||
Pole Master (all pulled to the top)(m) | 9m | ||
weight（Kg） | 1360kg | ||
Engine | Engine Brand | CHANGCHAI | KUBOTA/YANMAR |
Engine Model | 3M78/CZ380Q | D1105/3TNV76 | |
Engine Power | 11.5/14.3 | 12.6/10.7 | |
Rotating speed(rpm) | 1500 | 1500 | |
Number of cylinders | 3 | 3 | |
Engine Type | water-cooled, four stroke | ||
Combustion type | Non-direct injection | / | |
Engine suction | Natural inhalation | ||
Emission level | convention | ||
Alternator | Frequency(HZ) | 50/60 | |
Output jack( 50/60Hz) | 230 / 240-120 VAC | ||
Generator insulation | Class H | ||
Motor protection class | IP65 | ||
Light pole & lamp | Headlights | Metal Halide/LED | |
Luminous flux | 440000/224000lm | ||
Lamps power x quantity | 4*1000W/4×400W | ||
Number of mast sections | 8 | ||
Light pole raising method | Hydraulic lift | ||
The lamp pole rotation | Maximum manual rotation of 330, with self-locking | ||
Irradiation Angle adjustment | Electric adjustment | ||
Trailer | Suspension & brakes | Plate spring suspension & single axle without brakes | |
Drawbar | With a retractable adjustable guide wheel traction rod | ||
Support legs & number | 4 hydraulic support legs with retractable support rods | ||
Tire size | 14" | ||
Drawing head | 2 " or 50 mm spherical traction head | ||
Taillight | Tail reflective sheet | ||
Maximum traction speed | 80km/h ( 62 mph) | ||
Other characteristics | Fuel tank form | Iron tank | |
fuel tankage | 90L | ||
Continuous working hours | 65 h | ||
Cable harness and electrical components | convention | ||
Unit startup mode or controller model | Key to start | ||
Maximum wind speed at full extension | 20 m/s (45 mph) | ||
Noise level | 7m72dB(A) | ||
Standard color | Housing ：Green / yellow , car body：Black / gray Ledge：Galvanized Light Poles Traction Poles and Support Legs | ||

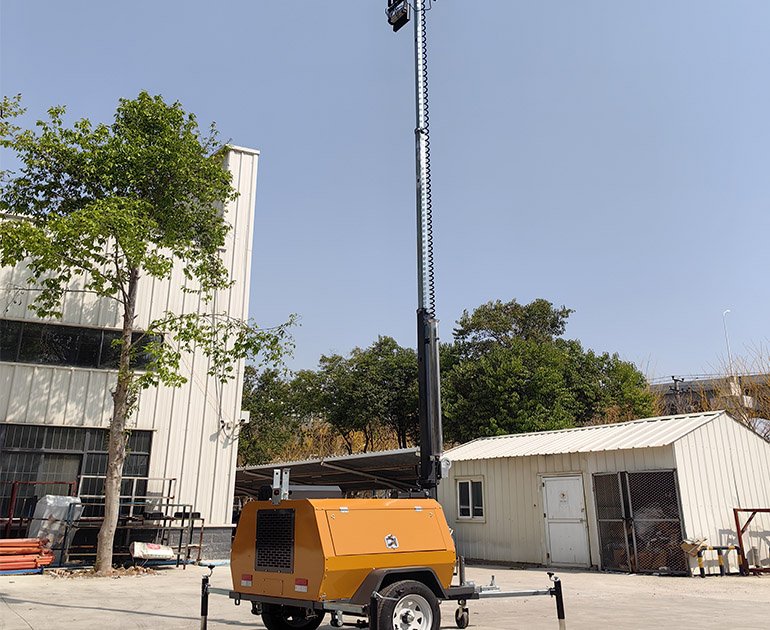

The mast can extend up to 9 meters.

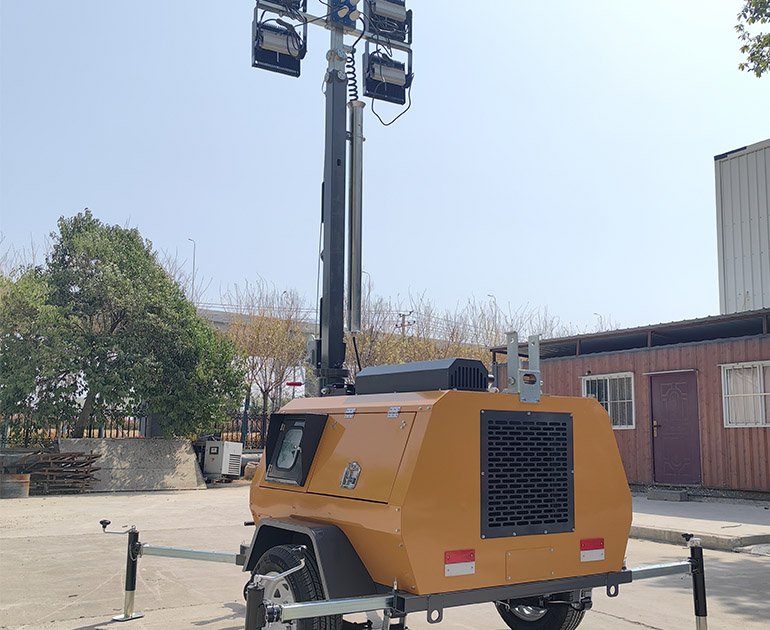

2 LED lights and 4 LED lights configurations are available.
What are the most prominent configurations of this model?
Fully hydraulic system, intelligent computer-controlled unit, one-key start, electrically adjustable lighting angle, and self-locking mast with 330° rotation.
Yes, OEM and ODM customization services are supported.
They are widely used in construction, highway maintenance, mining, emergency rescue and municipal projects.
Kubota, Yamaha ,Changchai generator options are available.
