All-in-one machinery for construction, cleaning, power supply and landscaping maintenance.

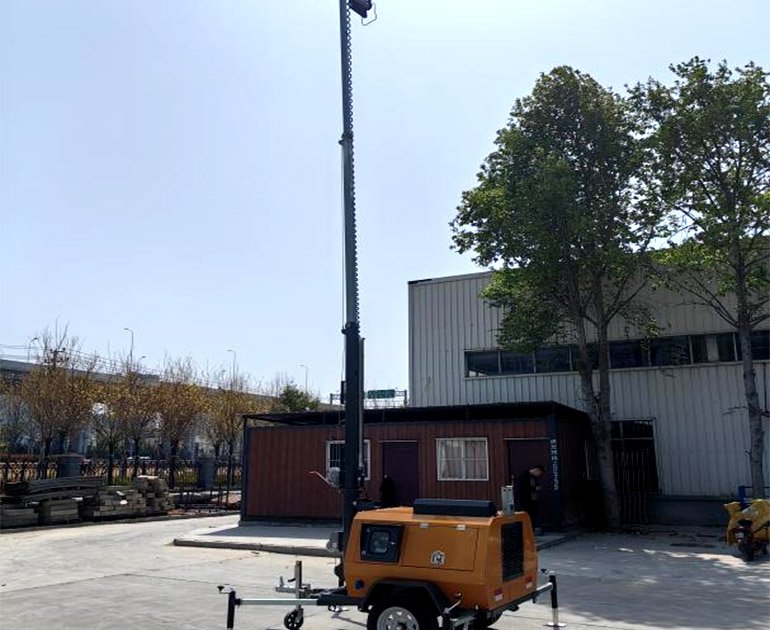

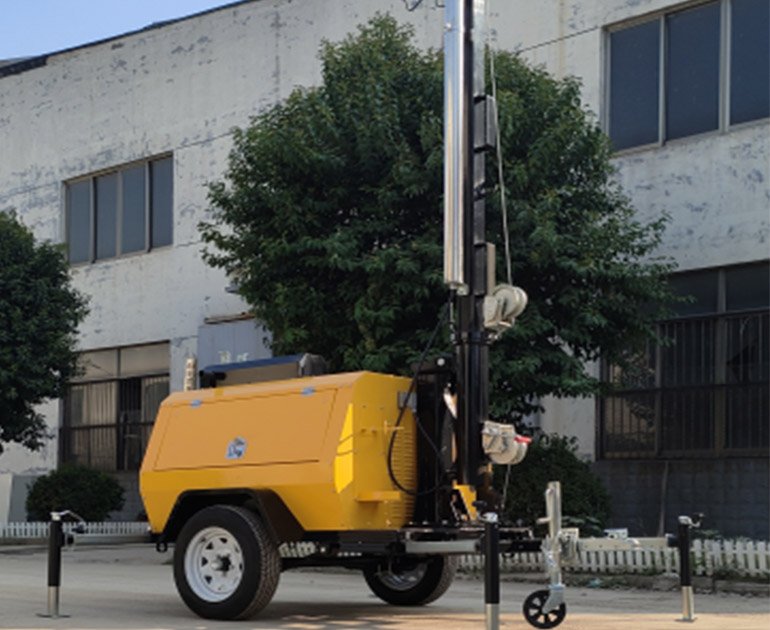

9m trailer mobile light tower with hand or electric lifting mast, LED lighting and generator power. Ideal for construction, mining and emergency projects.
Performance characteristics
Equipped with famous brand engine, could guarantee quality stability and excellent performance
Equipped with metal halogen lamp or LED lamps, large luminous flux and long life
High-performance self-braking manual or electric winch
3-section lifting rod, galvanized lamp post, anti-drop, corrosion-resistant
Five windproof support legs for stable support
Integrated operating panel with rain cover
9 meters lifting height, adjustable irradiation angle, long irradiation distance
Large capacity fuel tank, long duration
· Highway and municipal engineering night construction
· Railway, bridge and tunnel construction
· Emergency rescue, fire fighting and disaster relief
· Mining and various industrial site lighting
· Port, wharf and airport site night operation
· Water conservancy, flood control and infrastructure construction
· Outdoor equipment maintenance and engineering maintenance
· Temporary lighting for large-scale outdoor events
· Petrochemical and field exploration in remote areas
· Various night temporary construction and security lighting
9m Ultra-High Lighting Height
It meets the large-area high-altitude lighting demands of major projects such as highways, railways, bridges, tunnels and mines, with a wide field of vision and extensive coverage.
Intelligent & Advanced Control System
Integrated lighting control panel with rain cover.
High-End Configuration, Durable & Reliable
Imported power unit, long-life LED light source and galvanized anti-corrosion light pole deliver a high-end overall configuration, suitable for high-intensity working conditions including long-term outdoor construction, remote field operations and post-disaster reconstruction.
Extra-Long Endurance for Continuous Operation
The large-capacity fuel tank guarantees long-time uninterrupted lighting without frequent refueling, greatly improving the efficiency of night construction and emergency rescue operations.
We specialize in outdoor emergency and construction lighting equipment manufacturing.
Every mobile lighting tower is tested before delivery to ensure stable performance.
We support customized solutions based on project and market requirements.
Professional international logistics and export support for global customers.
Efficient production management ensures reliable lead time and bulk order support.
We provide flexible OEM and ODM solutions for global distributors, wholesalers and project contractors.
Customization options include:
1.Logo printing
2.Product color
3.Engine / Generator Brand Configuration
4.Lamp quantity
5.Packaging design
Model | 9M | |
Engine | CHANGCHAI/CHANGCHAI/YANMAR/Kubota | |
Engine Model | 380/3M78/3TNV76/D1105 | |
Engine Type | three cylinder, water-cooled, four stroke | |
Power | kW | 14.3KW/11.5KW/10.7KW/12.6KW |
Rotating speed | rpm | 1500 |
Combustion System | E-TVS | |
Engine aspiration | Naturally aspirated | |
Emission level | Regular | |
Generator power | KW | 6 |
Standard configuration | SPARKS | |
Rating voltage | V/HZ | 220/50 |
Alternator insulation | CLASS H | |
Alternator protection grade | IP23 | |
Type of Lights | Regular metal halide/LED | |
Luminous flux | lm | 440000/224000 |
Number & power of lights | W | 4*1000/4*400 |
Number of mast sections | Section | 3 |
Fuel tank capacity | l | 110 |
Continuous working time | hour | 80 |
Generator starting type | Key starting | |
Max. against wind | m/s | 20 |
Noise level | dB | 74dB(A) at 7 meters away |
Suspension & Brake | Leaf spring suspension & alone without brake | |
Drawbar | Adjustable lever with telescopic adjustment guide wheel | |
Full extending height | m | 9 |
Wheel's rim size | ’’ | 14 |
Max towing speed | km/h | 100 |
Length | mm | 4360 |
Width | mm | 1630 |
Height | mm | 1450 |
Weight | kg | 950 |
The mast can extend up to 9 meters.
2 LED lights and 4 LED lights or metal halide lamp configurations are available.
Yes, OEM and ODM customization services are supported.
They are widely used in construction, highway maintenance, mining, emergency rescue and municipal projects.
Kubota, Yamaha ,Changchai generator options are available.
We supply portable mobile lighting towers to customers worldwide for construction, infrastructure and emergency applications. With reliable product quality and professional export service, we support distributors, contractors and engineering companies with stable long-term cooperation.
