All-in-one machinery for construction, cleaning, power supply and landscaping maintenance.
Performance Features
- Equipped with brand-name power units, guaranteed quality and excellent performance
- Fitted with energy-saving LED lamps, high luminous flux, energy-efficient
- High-performance motor, hand-lifting lifting and lowering
- 4-section lifting pole, galvanized lamp mast, anti-fall and corrosion-resistant
- Three wind-resistant outriggers for stable support
- Integrated control panel with rainproof cover
- 7-meter maximum lifting height, adjustable lighting angle, long irradiation distance
- Large-capacity fuel tank for extended working endurance

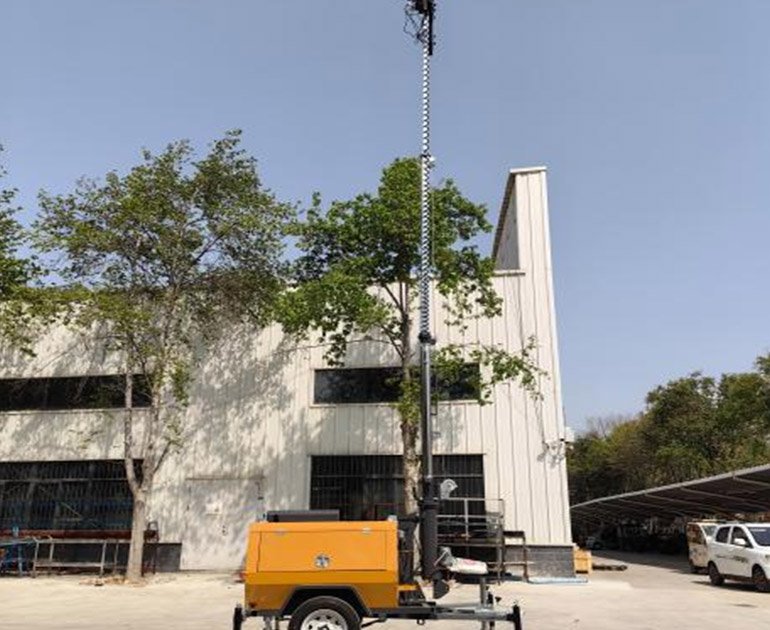

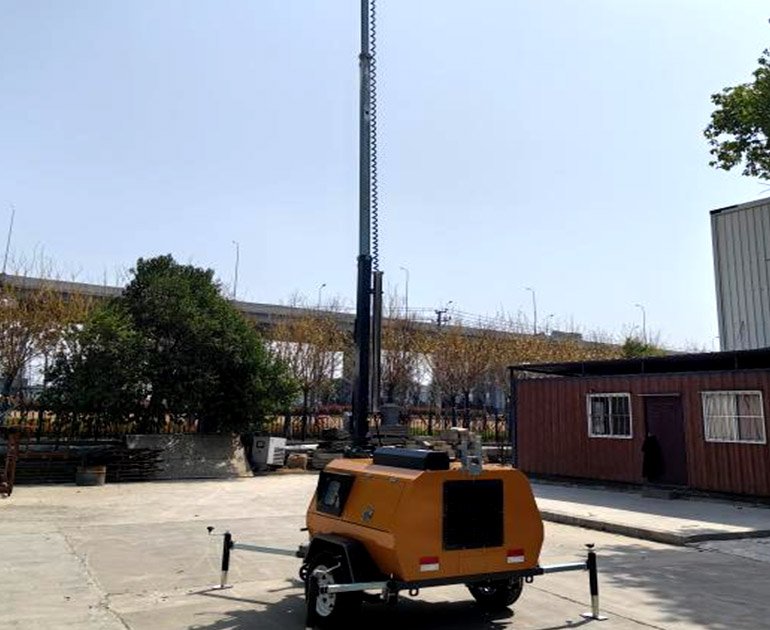

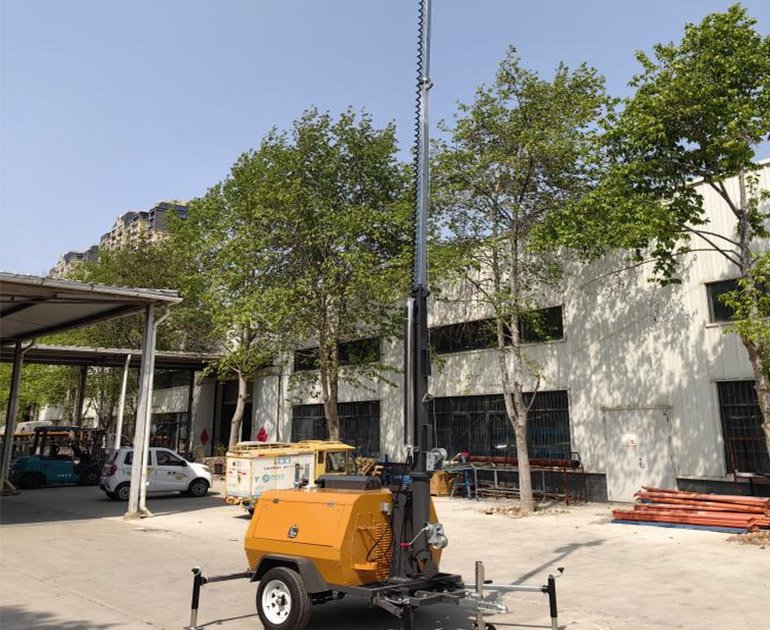

The 7m Mobile Lighting Tower is widely used in:
1.Road and highway construction
2.Municipal engineering projects
3.Emergency rescue operations
4.Mining and industrial sites
5.Outdoor maintenance work
6.Railway construction
7.Infrastructure projects
8.Temporary outdoor lighting
9.Disaster recovery operations
10.Remote field operations

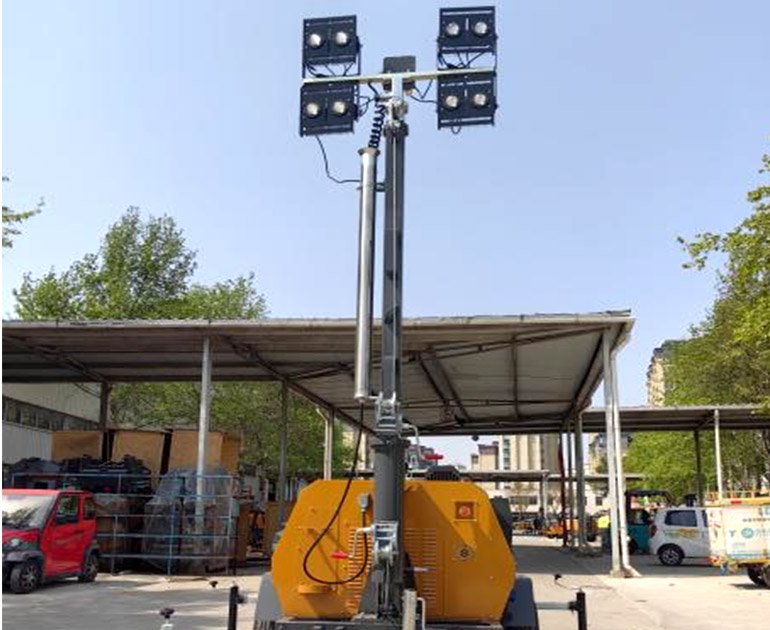

High Brightness LED Lighting
Equipped with high-efficiency LED lamps, providing stable and wide-range illumination.
7m Adjustable MastMulti-section telescopic mast can extend up to 7 meters for wider lighting coverage.
Long EnduranceLarge-capacity fuel tank ensures long-time continuous operation at outdoor job sites.
Sturdy & Durable StructureHeavy-duty steel structure with anti-rust surface treatment, suitable for harsh environments.
Easy TransportationTrailer-type design enables convenient movement and on-site deployment.
Hand-lifting，which is easy and labor-saving to operate.
1.Portable mobile lighting tower design
2.2 LED lights or 4 LED lights optional or metal halogen lamp
3.Reliable gasoline and diesel generator options
4.Strong wind resistance performance
5.Hand-lifting system, easy to operate
6.Stable lighting output for outdoor projects
7.Anti-corrosion surface coating
8.Long lifespan LED lighting system
9.Suitable for remote construction environments
We specialize in outdoor emergency and construction lighting equipment manufacturing.
Every mobile lighting tower is tested before delivery to ensure stable performance.
We support customized solutions based on project and market requirements.
Professional international logistics and export support for global customers.
Efficient production management ensures reliable lead time and bulk order support.
We provide flexible OEM and ODM solutions for global distributors, wholesalers and project contractors.
Customization options include:
1.Logo printing
2.Product color
3.Engine / Generator Brand Configuration
4.Lamp quantity
5.Packaging design
Customized logo, color, lighting configuration and power options are available.
Technical Date | Unit | 4VA4000 | |
Model | 4VA4000 | ||
Engine | Changchai | ||
Engine Model | 186F | ||
Engine Type | One cylinder, Air-cooled, four stroke | ||
Power | kW | 5.5 | |
Frequency | Hz | 50 | |
Rotating Speed | rpm | 3600 | |
Emission level | TIER 4 | ||
Alternator | Brushless and single phase | ||
Alternator insulation | CLASS H | ||
Rated voltage | v | 220 | |
Output socket | pc | 1 (220V,10A) | |
Continuous working time | hour | 28 | |
Fuel tank capacity | l | 38 | |
Number & power of lights | w | 1000*4/400*4 | |
Luminous flux | lm | 440000/224000 | |
Irradiation distance | m | 100-150 | |
Headlight | metal halide lamp/LED | ||
Stabilizing legs | Manual adjustment | ||
Light pole telescopic | Vertical lift | ||
Lifting method | Hand lift | ||
Light mast operation | 4-section lifting bar | ||
Slope | <10 | ||
Wind resistance level | <8 | ||
Suspension and brake | Hex rubber shaft without brake | ||
Length | mm | 2180 | |
Width | mm | 1130 | |
Height | mm | 2700 | |
Pole height | M | 7 | |
Tires and rims size | ’’ | 13 | |
Weight | kg | 550 | |
The mast can extend up to 7 meters.
2 LED lights and 4 LED lights or metal halogen bulbs configurations are available.
Yes, OEM and ODM customization services are supported.
They are widely used in construction, highway maintenance, mining, emergency rescue and municipal projects.
Kubota, Yamaha ,Changchai generator options are available.
We supply portable mobile lighting towers to customers worldwide for construction, infrastructure and emergency applications. With reliable product quality and professional export service, we support distributors, contractors and engineering companies with stable long-term cooperation.
