All-in-one machinery for construction, cleaning, power supply and landscaping maintenance.
Our Backhoe Loader combines powerful loading, digging and material handling capabilities in one versatile machine. Designed for farming, construction, landscaping and municipal projects, it features 4WD performance, high digging efficiency, CE certification and multiple attachment options. As a professional backhoe loader manufacturer, we provide OEM/ODM customization, factory-direct pricing and reliable global delivery support.
Get the latest Backhoe Loader price, catalog and technical proposal. Our engineers will recommend the most suitable configuration based on your application and budget.
· Multi-Purpose Functionality
Combined front loader and backhoe in one machine, replaces multiple farm equipment. Compatible with various attachments (breaker, grapple, fork, auger) for maximum versatility.
· Compact & Farm-Friendly
Narrow body, tight turning radius and 4WD design work perfectly in small fields, narrow farm lanes and muddy ground. Roadable for easy on-site transfer.
· Powerful & Fuel-Efficient
Reliable diesel engine with strong torque and optimized hydraulics delivers high productivity with low fuel consumption, reducing your daily running costs.
· Operator Comfort & Safety
Enclosed cabin with all-around visibility, comfortable seat and safety features for long working hours. Built to EU safety standards.
· Heavy-Duty Construction
Reinforced boom, thick steel frame and heavy-duty components ensure long service life and low maintenance in tough farm conditions.
· CE Certified & Customizable
CE compliant for UK/EU use. Customizable bucket size, digging depth and attachments to match your farm’s specific needs.
· Multi-functional & Cost-saving: Combines loader, excavator and attachment compatibility, replacing multiple farm machines and cutting your equipment investment.
· Farm-ready & Agile: Compact body, 4WD and tight turning radius work perfectly in narrow farm lanes, small fields and muddy UK terrain.
· Powerful & Fuel-efficient: Reliable diesel engine with optimized hydraulics delivers high productivity at low fuel consumption, reducing daily operating costs.
· Heavy-duty & Durable: Reinforced boom and thick steel frame ensure long service life and low maintenance in tough farm conditions.
· CE Compliant & Safe: Meets EU/UK standards for immediate use. Enclosed cabin with safety features protects operators during long shifts.
· Factory Price & Full Support: 30-50% lower cost than European brands with same performance. 12-month warranty, English support and customizable options for your farm.
1. Comprehensive Customization
We provide OEM and ODM services. Customizable items include machine configuration, functional parameters, appearance, colors and logos.
2. High Flexibility
More flexible than peers. We can adjust solutions freely according to your market, application scenarios and budget, suitable for orders of all sizes.
3. One-stop Service
Full support from design, prototype testing to mass production. Fast delivery helps you launch prod

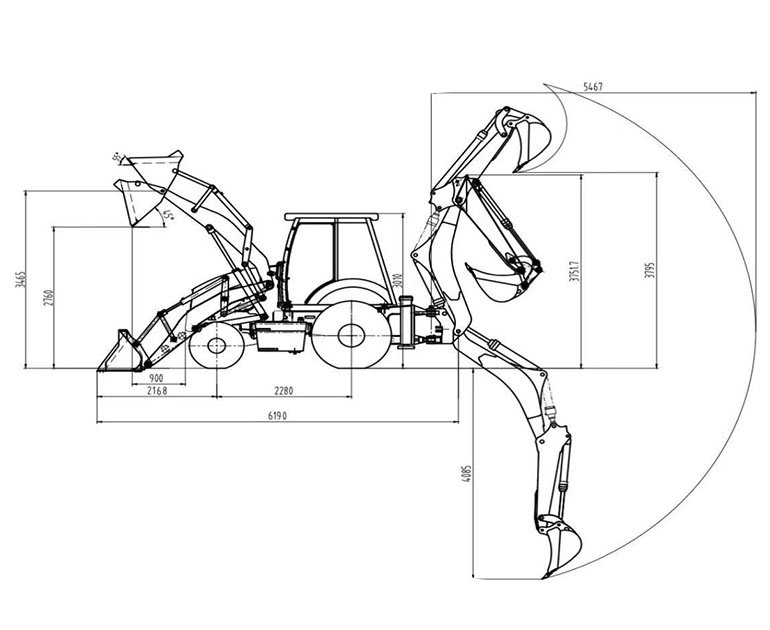

The Technical Parameter of Backhoe Loader
| |||||||
Overall Dimension | |||||||
1 | Length(with bucket on ground) | 6450mm | |||||
2 | Overall width（at stabilizer ） | 2400mm | |||||
3 | Load Bucket width | 2400mm | |||||
4 | Height(To the top of the cab) | 3120mm | |||||
5 | Height(To the top of the digging pole) | 3940mm | |||||
6 | Wheel base | 2335mm | |||||
7 | Back wheel Tread | 2139mm | |||||
Main Loading Technical Specification | |||||||
1 | Rated load | 3000KG | |||||
2 | Operating weight | 8000kg | |||||
3 | Rated bucket capacity | 1.7m³ | |||||
4 | Max. dump clearance | 3100mm | |||||
5 | Dump reach | 870mm | |||||
6 | Radius of turn（Outside of bucket） | 5750mm | |||||
Main Digging Technical Specification | |||||||
1 | Rated digging bucket capacity | 0.35m³ | |||||
2 | Max. digging depth | 4100mm | |||||
Optional digging depth(telescopic digging boom) | 5100mm | ||||||
3 | Max. digging radius | 5345mm | |||||
4 | Max. dumping height | 3740mm | |||||
5 | Max. Digging Height | 5470mm | |||||
6 | Lifting force at Max. digging radius | 1220kg | |||||
Diesel engine | |||||||
1 | Brand/Model | YUCHAI/WEICHAI | |||||
2 | Type | In Line，Direct injection，Four-Stroke，Water Cooling | |||||
3 | Rated output | 85(KW) | |||||
4 | Optional engine | YUCHAI /WEICHAI CUMMINS 4BT3.9-C100 or 4BT3.9-C125 CUMMINS EURO3 QSB3.9-C100 or QSB3.9-C125 EURO5 YUCHAI or EPA4 CUMMINS | |||||
Transmission System | |||||||
1
| Torque Converter | Model | 315 | ||||
Cooling type | Pressure oil circulating | ||||||
2 | Gearbox | Type | Synchromesh mechanical shift | ||||
3 | Drive axle | Type | Four wheel drive Four wheel steering Crab walk | ||||
4 | Gear shift position | 4 F、 4 R | |||||
5 | （F/R）km/h | F1，5km/h；F2，10km/h； F3，18km/h；F4，40km/h； R1，5km/h；R2，10km/h； R3，18km/h；R4，32km/h； | |||||
6 | Size of tire | 16.9-28 | |||||
The hydraulic system | |||||||
1 | Working pump discharge | 63ml/r | |||||
2 | Working pump pressure | 22Mpa | |||||
Oil Capacity | |||||||
1 | The hydraulic oil tank | 125L | |||||
2 | Diesel fuel tank | 125L | |||||
Packing Quantity（1*45HC | 2Units | ||||||
Description (Department-specific options): The front shovel unit features a bucket, the rear excavation unit has an excavator bucket; the luxury version includes an interior cab with fan, LED lighting, large rearview mirror, window-breaking hammer, fire extinguisher, sliding windows, sunroof, heating system, adjustable rotating seats, customizable dashboard, color LCD display, hydraulic pilot control for both front and rear shovels, optional engine configuration, 16.9–28 mm wide tires on both axles, a custom-designed 315-speed dual-speed transmission, four-wheel steering, four-wheel drive, crab-like driving capability with seamless switching between three steering modes, and H-shaped or A-shaped support legs. | |||||||
· Is this backhoe loader legal and compliant for use in the UK?
Yes. All our machines are fully CE certified, meeting EU and UK safety, emission and operational standards. They can be imported and used on farms directly without additional modification.
· Can this machine work stably on muddy and wet UK farmland?
Absolutely. It is equipped with 4-wheel drive and reinforced outriggers, providing strong traction and stability on slippery, muddy or uneven terrain. It is well adapted to the rainy and humid climate in the UK.
· What farm equipment can this backhoe loader replace?
It combines front loading and rear digging functions, and can replace mini loaders, small excavators, forklifts and other farm handling machines. With optional attachments such as augers, grapples and forks, it supports ditching, material handling, fencing, land clearing and more.
· Is this machine fuel-efficient for long daily farm work?
Yes. It uses a reliable diesel engine with optimized hydraulic system, delivering lower fuel consumption than many similar European models. Its stable structure and low failure rate also reduce long-term maintenance costs for farms.
· How do you support after-sales service and spare parts in the UK?
We provide a 12-month warranty, full English manuals and online technical support. We also maintain stable spare parts supply with fast shipping to major UK ports, ensuring your machine keeps running with minimal downtime.
